Overview
The ECO Charge 7.2kW Smart OCPP EVSE is a feature-rich single-phase wall-mounted EVSE for everyday home, bach, workplace, and light commercial EV charging.
It is a great option if you want more than a basic wall unit, with Dynamic Load Balancing, OCPP support, app control, RFID access, plug-and-charge operation, optional solar capability, and a flexible Type 2 socket.
Because this is a socketed EVSE, you use your own charging cable. This makes it easy to charge different vehicles by using the correct cable, and means you can take the cable with you to BYO-cable AC charging locations such as malls, supermarkets, motels, and public destination chargers.
Best for
- Homes wanting a smart single-phase wall-mounted EVSE
- Drivers wanting Dynamic Load Balancing to help protect the home supply
- Customers wanting OCPP support for future smart charging compatibility
- Multi-EV households where a socketed EVSE gives more flexibility
- Baches, shared driveways, small workplaces, and light commercial installs
Compatibility

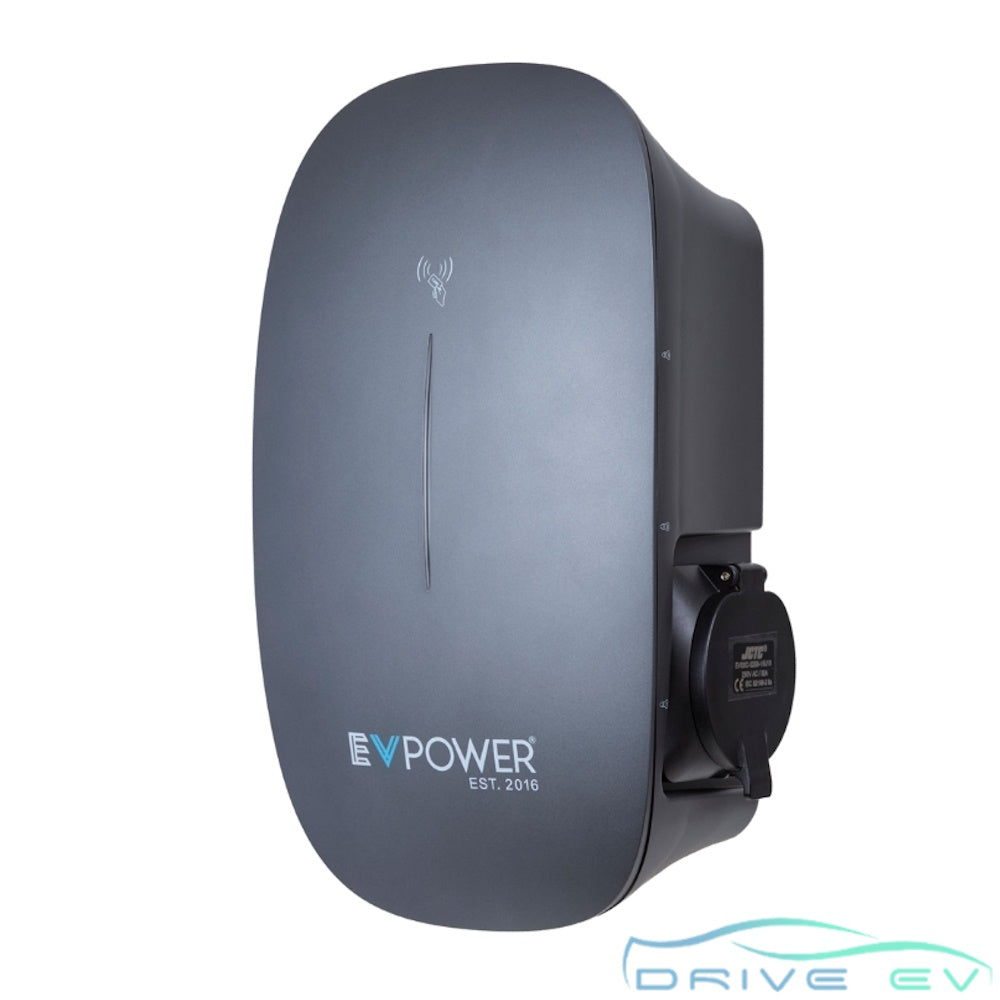

Connection type: Type 2 socket / untethered
This EVSE suits Type 2, Type 1, and Japanese-import Tesla/NACS electric vehicles and plug-in hybrids when used with the correct charging cable.
- Use a Type 2 to Type 2 cable for most NZ-new, UK-import, European, Korean, Chinese, and modern Type 2 EVs.
- Use a Type 2 to Type 1 cable for many Japanese-import Type 1 vehicles such as Nissan Leaf and Mitsubishi Outlander PHEV.
- Use a Type 2 to NACS cable for Japanese-import Teslas with the NACS/Tesla charge port.
Why choose the ECO Charge?
- Smart value: more feature-rich than a basic wall unit without jumping to the top of the price range
- Dynamic Load Balancing: adjusts charging power to help reduce the risk of overloading your home supply
- OCPP support: useful future-proofing as energy companies and charging networks move toward smarter managed charging

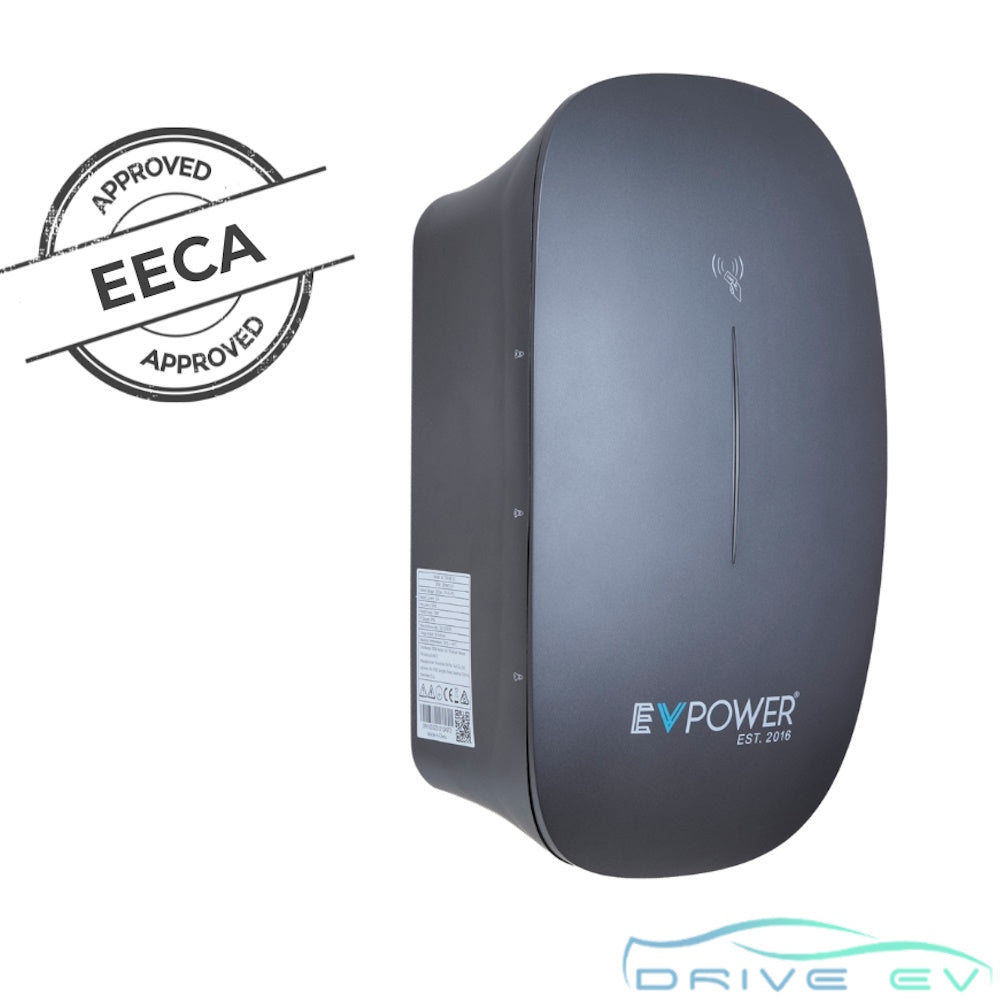

- EECA-approved: listed as an approved smart EV charger for New Zealand use
- Socketed flexibility: change cables as your vehicles change, or support visitors with different EVs
- Multiple start options: use app control, RFID cards, or simple plug-and-charge operation
- Optional solar capability: can be set up for solar-aware charging with optional accessories
- Built-in DC leakage detection: includes EV-specific fault protection as part of the unit
Smart charging features

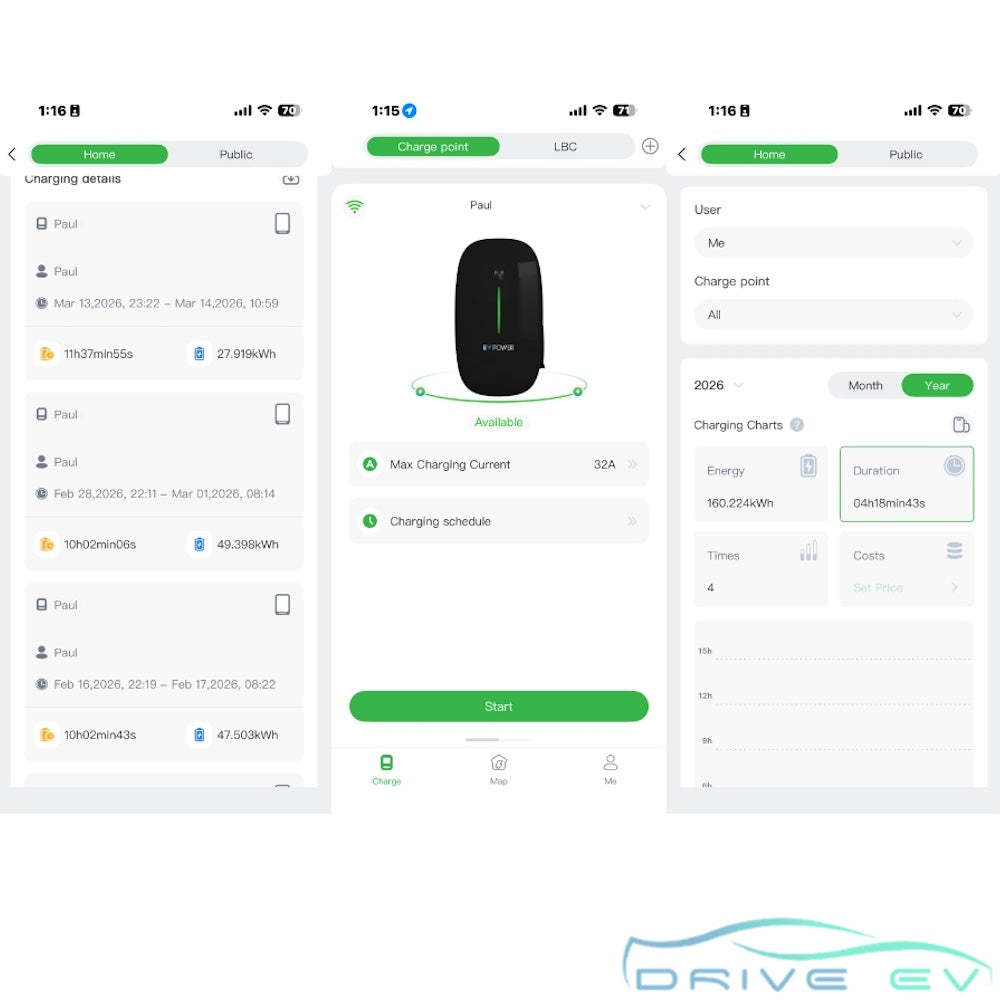

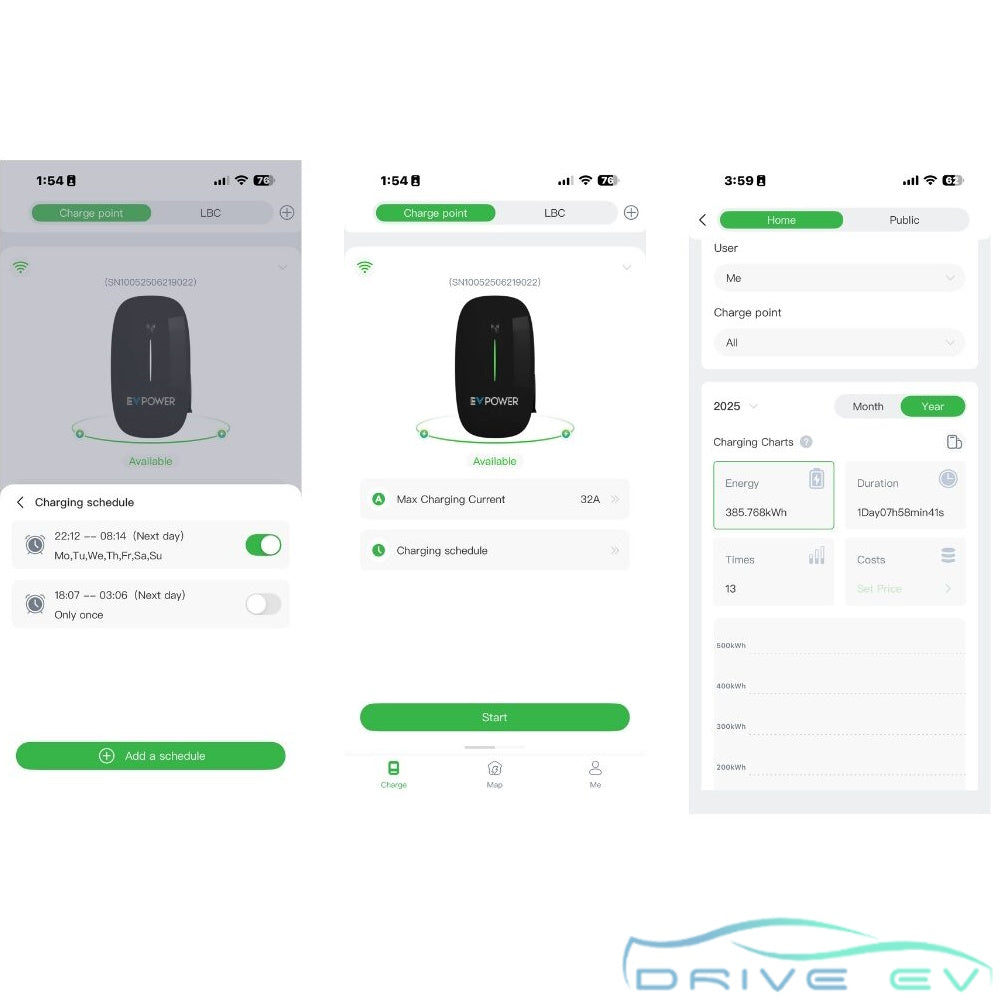

The ECO Charge includes app-based control for starting, stopping, scheduling, and monitoring charging. It can show charging status and session information, and can also be set up for simple plug-and-charge use if you prefer not to use the app day to day.
Dynamic Load Balancing uses a CT clamp to monitor site demand and adjust EV charging power when other household loads are high. This is especially useful for homes where the main supply may be limited or where large appliances are often used while the EV is charging.
OCPP support gives the EVSE a pathway for future smart charging and managed charging services. Where compatible services are available, this can allow opt-in control or management of charging during peak demand periods.
Charging speed guide
On a suitable single-phase 32A supply, this EVSE can charge at up to 7.2kW. That is roughly 50–55km of range per hour for a typical efficient EV, or most/all of a full charge overnight for many vehicles.
Actual charging speed depends on the vehicle, cable, installation, available supply, EVSE settings, battery state, and charging losses.
Technical specifications
- Rated power: Up to 7.2kW
- Supply: Single-phase 230V AC
- Maximum current: 32A
- Connection type: Type 2 socket / untethered
- Start methods: App / RFID / plug-and-charge
- Dynamic Load Balancing: Included, CT clamp supplied
- OCPP: OCPP 1.6 compatible
- Solar: Optional solar capability with additional accessories
- Protection: Type A RCD and built-in 6mA DC leakage detection
- Ingress protection: IP65
- Impact rating: IK08
- Operating temperature: -30°C to +50°C
- Compliance: IEC 61851 series
- Warranty: 3 years
Choosing the right EV charging setup
The ECO Charge is a great choice if you want a smart, socketed, single-phase wall EVSE with Dynamic Load Balancing, OCPP support, optional solar capability, and app/RFID/plug-and-charge control.
If you want a simpler and more budget-friendly socketed wall EVSE, consider the EV Power Slimline Single Phase EVSE. It is hard to beat for a simple, robust, easy-to-use 7.2kW setup.
If you prefer a premium New Zealand-made EVSE with the Evnex software and support ecosystem, clean design, integrated connectivity, solar-aware charging, and strong local backing, consider the Evnex E2 Plus.
Stock and dispatch
We aim to keep the ECO Charge in stock for fast dispatch. If timing is important, please get in touch before ordering and we can confirm current availability.
Installation
This EVSE must be installed by a registered electrician. Suitable circuit protection and installation requirements will depend on your site, switchboard, supply capacity, and whether Dynamic Load Balancing or optional solar functionality is being used.
Why buy from Drive EV?
Drive EV specialises in electric vehicles, EV servicing, and EV charging equipment. We select products that make sense for New Zealand vehicles and real-world use, and we can help if you are unsure which EVSE is right for your vehicle, home, or power supply.
- NZ-compatible EV charging equipment
- Practical advice from EV specialists
- Local support and warranty assistance
- Real-world EV knowledge from an EV workshop
Warranty
This EVSE includes a 3-year warranty when installed by a registered electrician in accordance with the required New Zealand electrical standards.
