The Evnex X22 is a high-performance smart EV charger designed for homes and businesses that want maximum flexibility, performance, and future-ready capability.
With support for both single-phase and three-phase installations, along with built-in smart and solar-aware charging, it is a strong option for higher-demand setups, workplaces, or anyone wanting a long-term solution.
Key features:
- Up to 22kW charging (three-phase capable)
- Up to 7.4kW on single-phase installations
- Available as socketed (untethered) or tethered with 5m Type 2 cable
- Built-in solar-aware charging
- Dynamic load balancing (includes CT clamps)
- Wi-Fi, 4G (LTE-M), and Ethernet connectivity
- App control, scheduling, and charging insights
- RFID access control capability
- Phase switching (single-phase or three-phase operation)
- IP55 rated for indoor or outdoor installation
- Designed and supported in New Zealand
Choose the connection type that suits your setup
This model is available in two connection types. Select the option that best suits your needs:

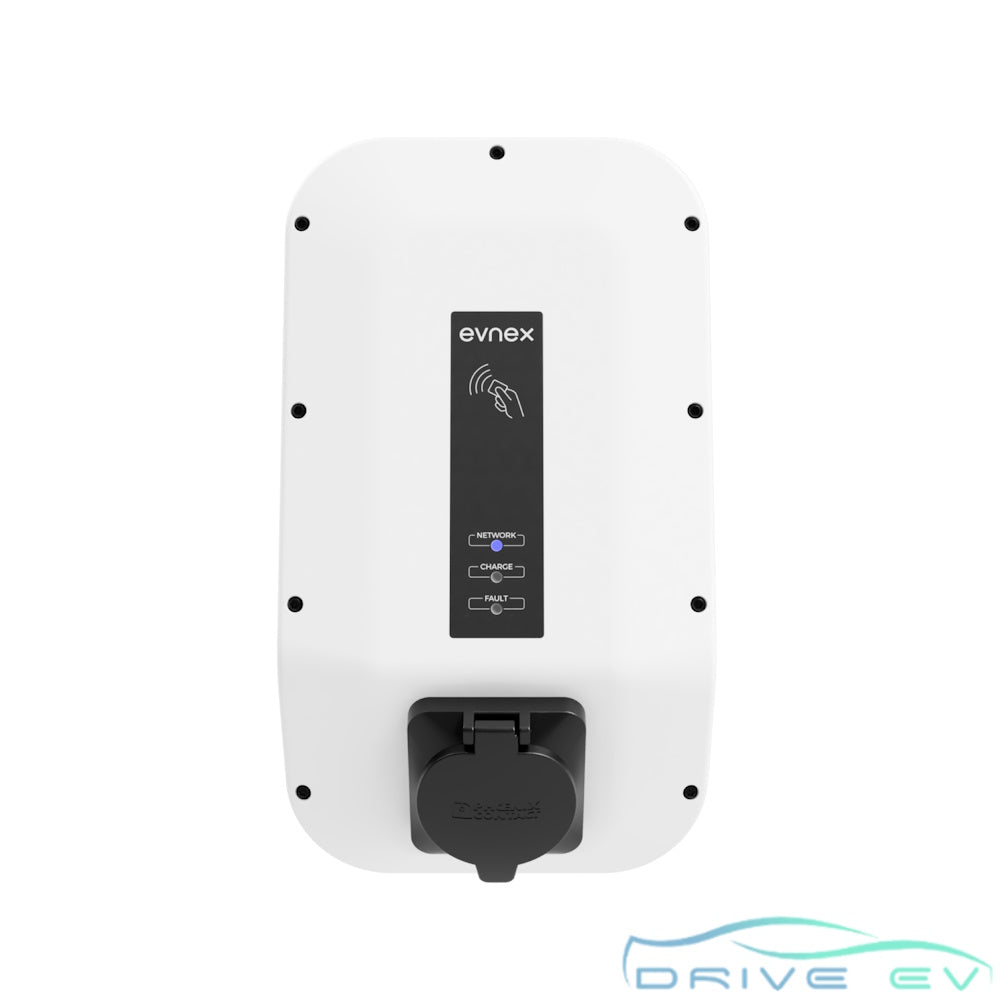

- Socket (untethered): Type 2 socket with no cable included. Use your own charging cable.

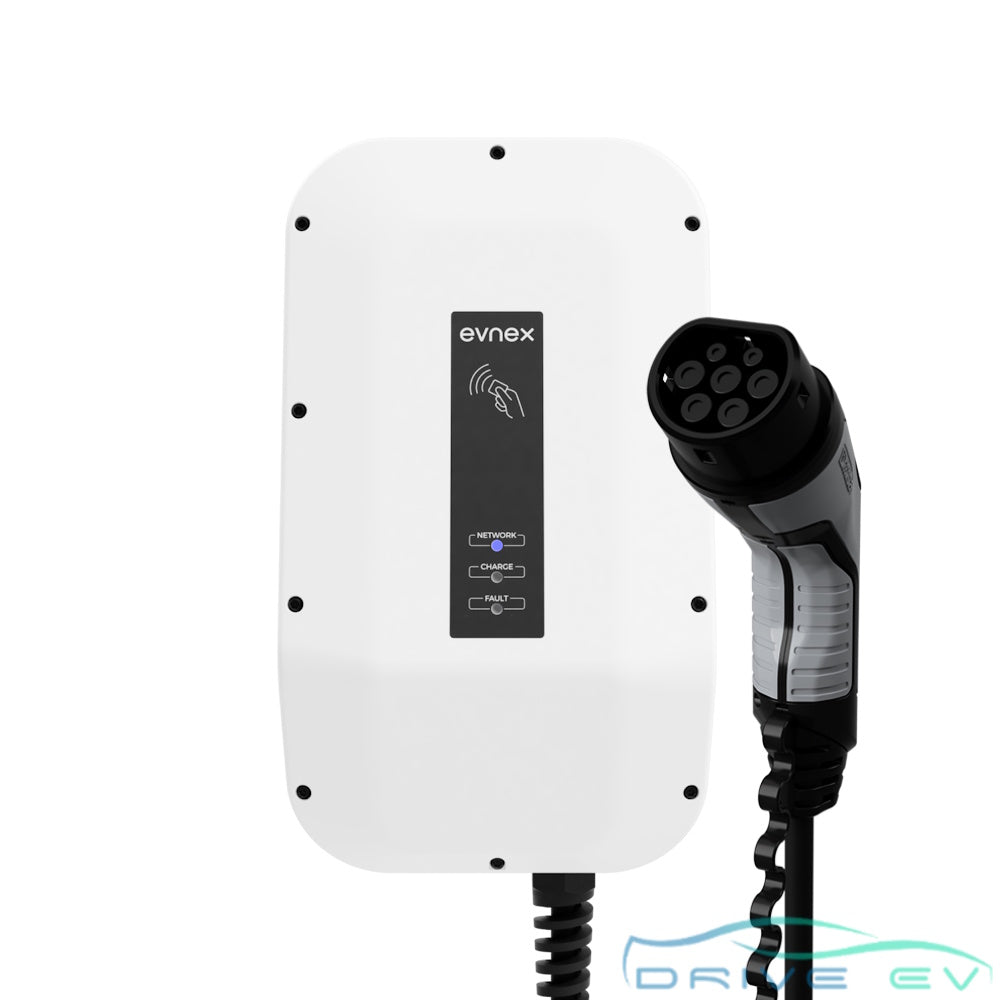

- Tethered: Includes a fixed 5m Type 2 charging cable for simple plug-in use.
Socketed flexibility (bring your own cable)
The socketed version gives you maximum flexibility. You can use different cable types depending on your vehicle, and swap cables as needed.
- Type 2 to Type 2 (most NZ-new EVs)
- Type 2 to Type 1 (many Japanese imports, e.g. Nissan Leaf)
- Type 2 to NACS (for compatible Japanese Import Teslas)
These cables can also be taken with you and used at public AC chargers that require you to bring your own cable. This makes the socketed version especially useful if you have multiple vehicles, or if friends and family visit with different EVs.
High-performance charging
When installed on a three-phase supply, the X22 can deliver significantly faster charging speeds, making it ideal for reducing charge times or supporting higher usage.
Smart and solar-aware
The charger can work alongside solar setups and automatically adjust charging to make better use of available energy.
Built for homes and businesses
The X22 is suitable for both residential and commercial installations. Multiple units can be installed and managed together for shared or fleet charging setups.
Choose your colour
This model is available in the following finishes:
- Snow

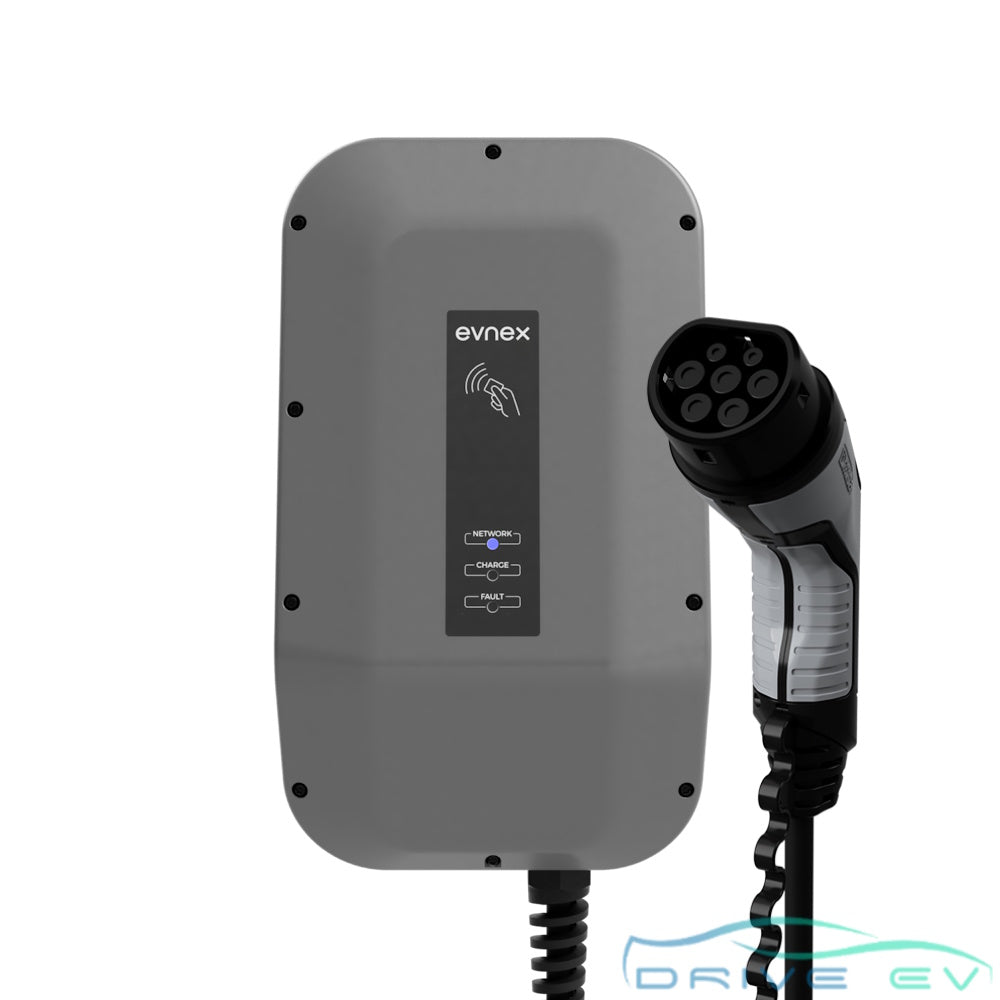

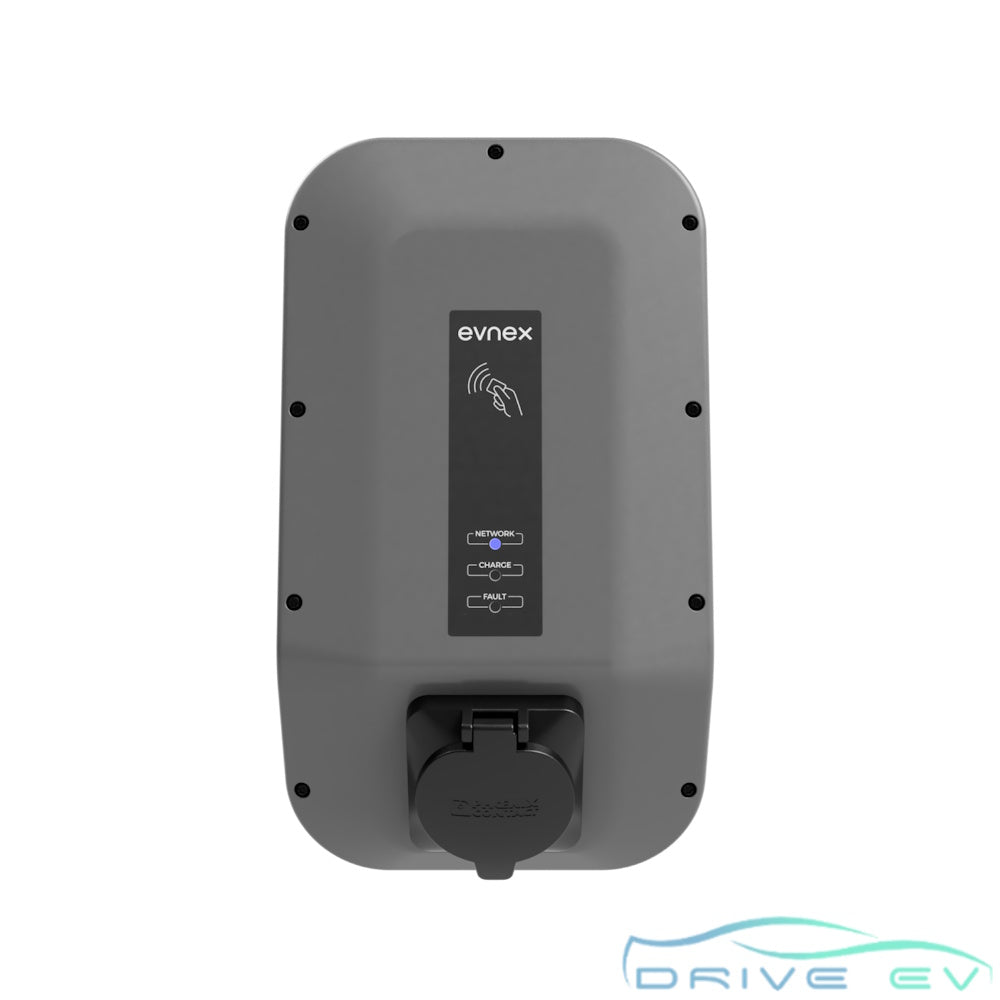

- Stone
Compatibility
- Type 2 connection (socket or tethered cable)
- Type 2 is used by most NZ-new EVs
- Type 1 is used by many Japanese import EVs (e.g. Nissan Leaf)
- If you're unsure what your vehicle uses, check before purchasing
What’s included
- Evnex X22 smart EV charger
- Power sensor and CT clamps for load balancing
- Type 2 plug holder
- Access to mobile app and smart charging features
- Installation mounting hardware
- Installation and user documentation
Specifications:
- Model: Evnex X22
- Colour options: Snow / Stone
- Charging capacity: Up to 22kW (three-phase) / up to 7.4kW (single-phase)
- Supply: Single-phase or three-phase
- Connection: Type 2 socket or 5m tethered Type 2 cable
- Connectivity: Wi-Fi + 4G (LTE-M) + Ethernet
- Ingress protection: IP55
Warranty
4-year residential warranty, or 3-year commercial warranty, with local NZ support.
Shipping & availability
This product is supplied directly from Evnex in Auckland.
Stock availability can vary depending on demand. If timing is important, get in touch and we can check current availability and help you choose the best option for your situation.
We’ll keep you updated throughout the process and confirm dispatch as soon as your unit is ready.
Installation
This charger must be installed by a registered electrician. Three-phase charging requires a suitable three-phase supply. Charging performance will depend on your vehicle, cable, and available electrical capacity.
Important
An internet connection is required for full smart functionality. The charger can operate without connection for limited periods, but smart features will be unavailable.
About Evnex
Evnex design, build and install smart electric vehicle charging systems. Their New Zealand-built chargers and software are designed to charge vehicles efficiently, affordably, and with minimal impact on the electricity grid.
