Overview

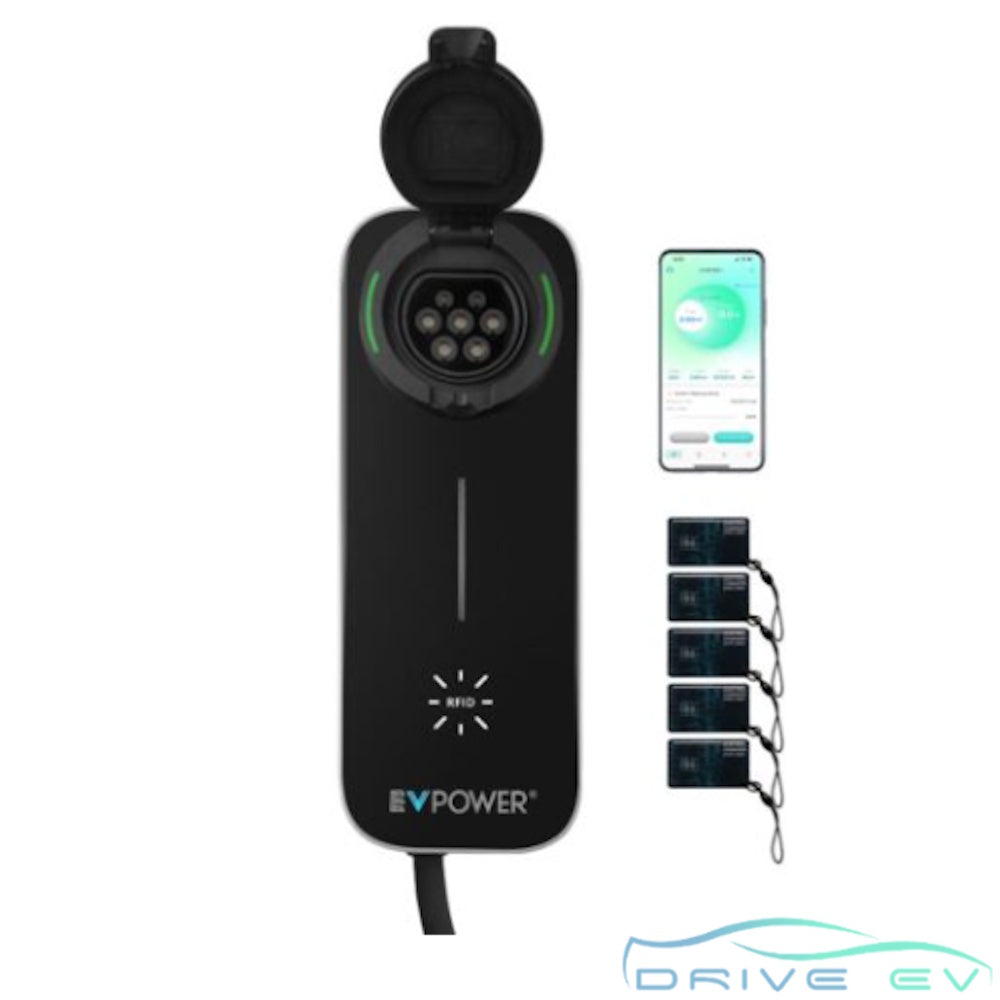

The Slimline Wall EV Charger is a compact, affordable fixed charging solution designed for everyday use in New Zealand conditions. Don’t let the price fool you — these units are seriously capable, delivering charging up to 22kW through a Type 2 socket.
This is a great option for homes and businesses wanting a clean wall-mounted charger with simple smart features, without stepping up to a fully cloud-connected system.
Best for
- Three-phase homes wanting faster charging
- Workplaces or shared charging setups
- Users wanting RFID or app control without complexity
- Upgrading from a portable or single-phase charger
Compatibility
Socketed Type 2 charger (bring your own cable).
- Type 2 to Type 2 (most NZ-new EVs)
- Type 2 to Type 1 (many Japanese imports, e.g. Nissan Leaf)
- Type 2 to NACS (for Japanese import Teslas)
Your cable can also be taken with you and used at public AC chargers that require a BYO cable.
Key features

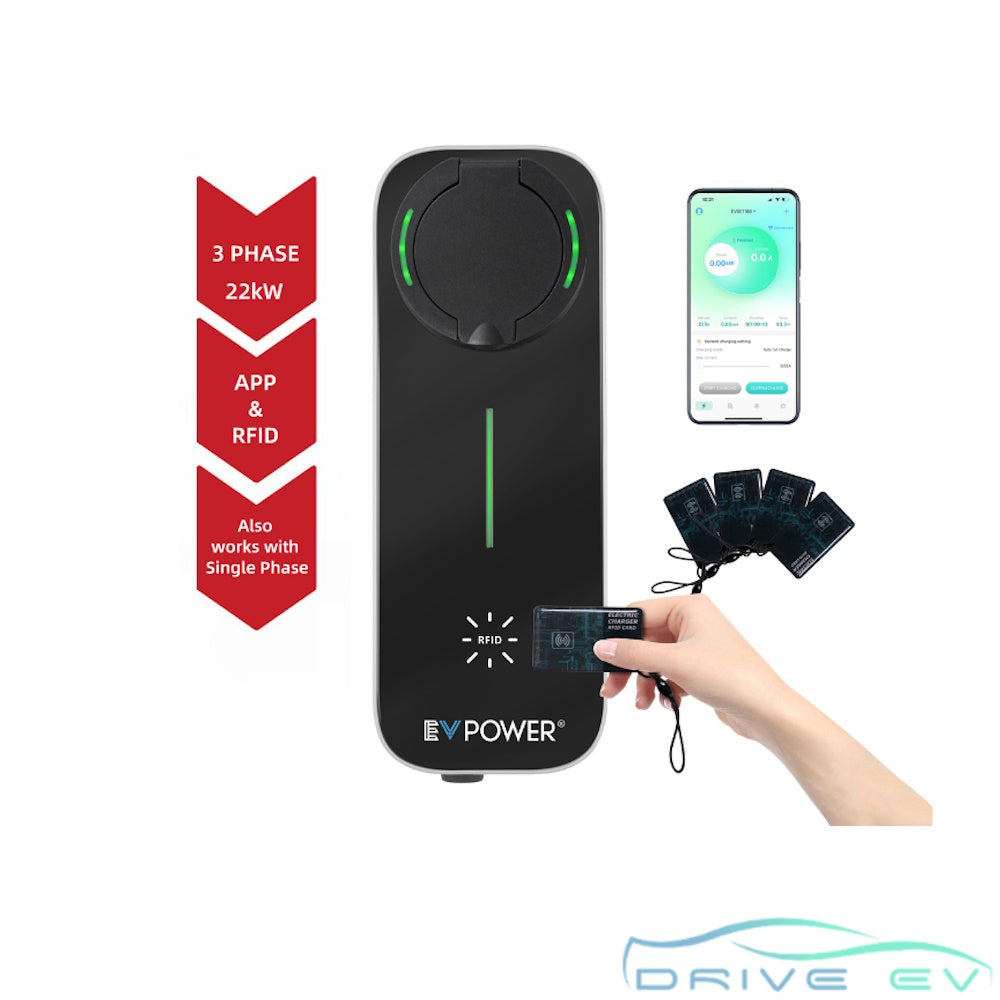

- Up to 22kW charging (32A three phase)

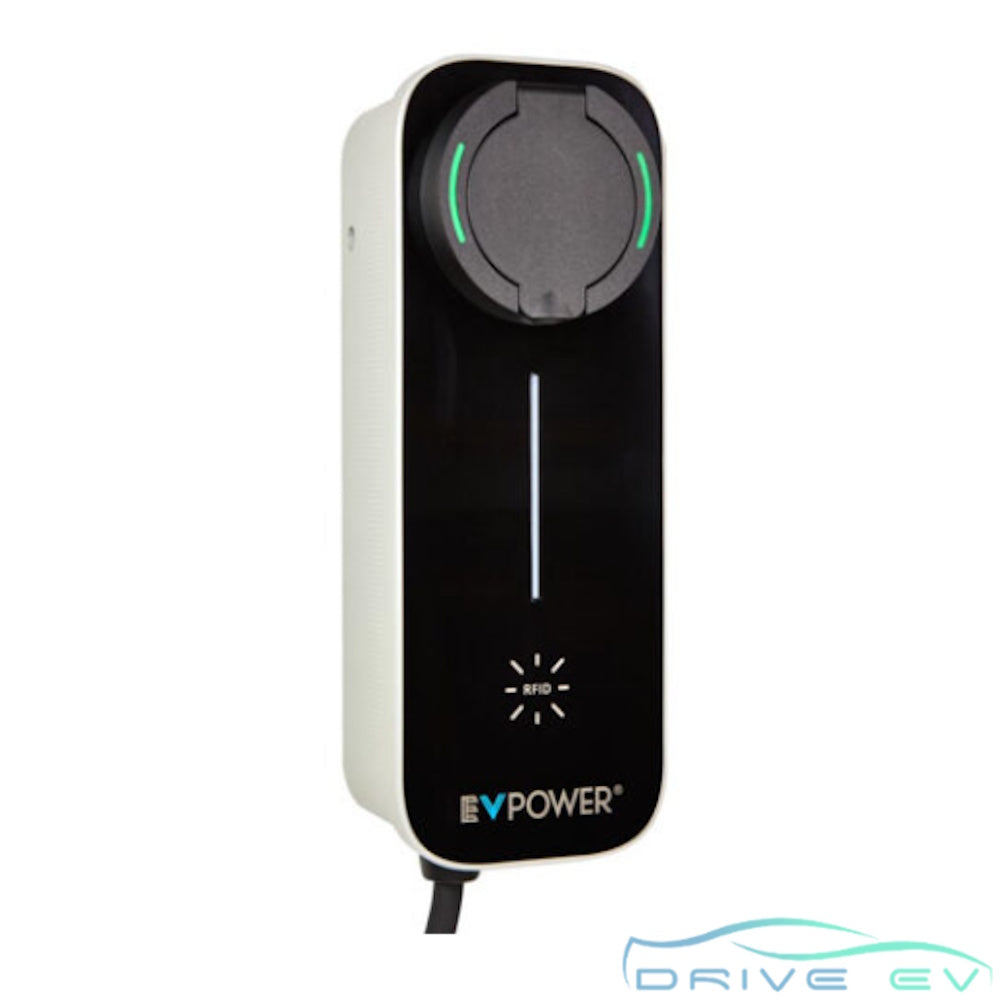

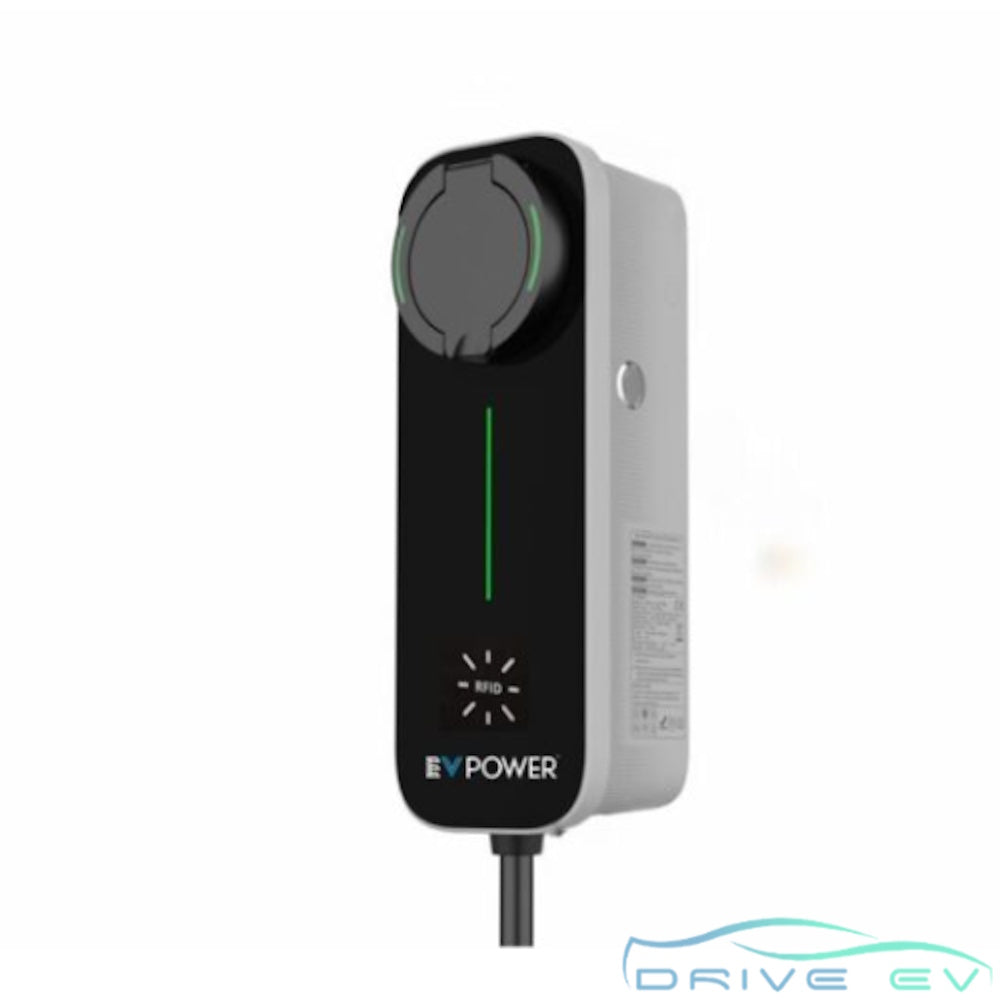

- Compact slimline wall-mounted design
- Type 2 socket (untethered – use your own cable)
- Bluetooth app control (EVSE Master)
- Charging schedules, current adjustment, and status monitoring

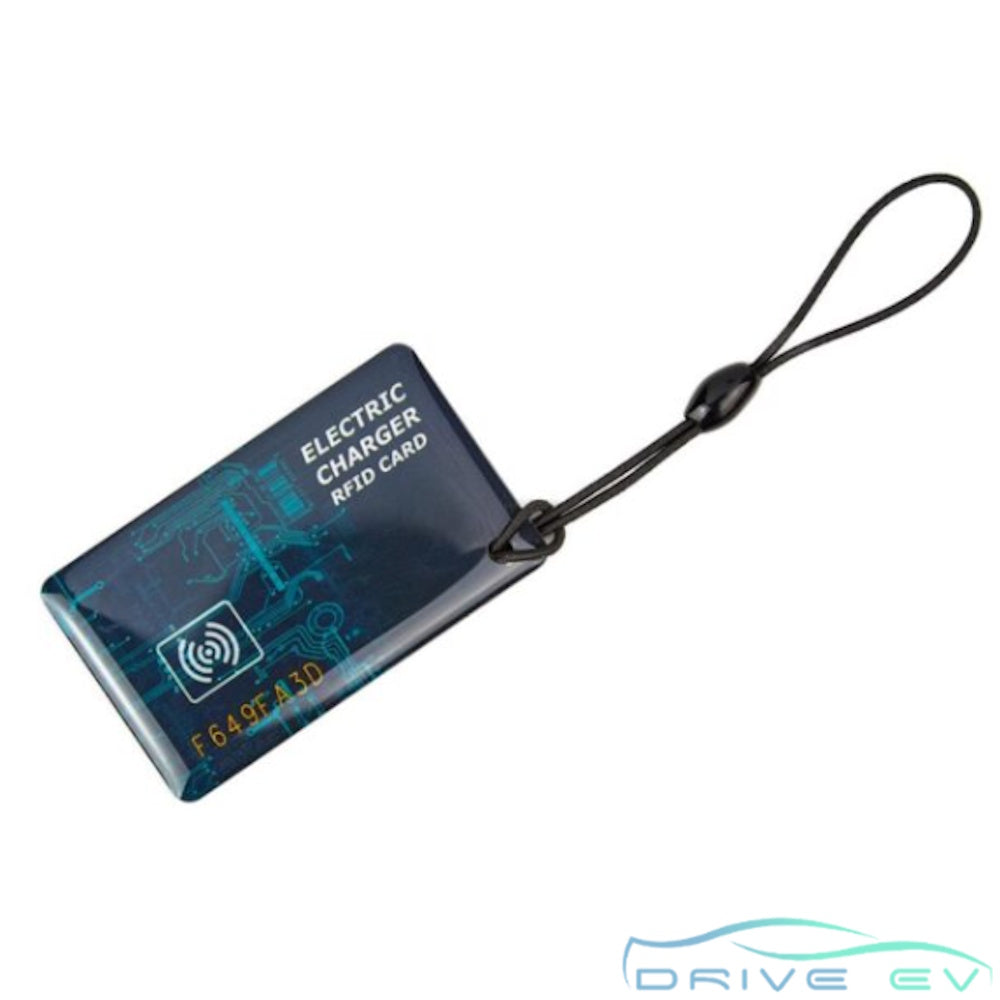

- RFID card support for simple access control
- Adjustable current settings to suit your installation
- Integrated safety protections including 6mA DC detection
- No RCD Type B required (reduces installation cost)
- IP66 rated for indoor or outdoor installation
Faster charging with three-phase
When installed on a three-phase supply, this charger can deliver significantly higher charging speeds compared to single-phase setups, helping reduce charge times for compatible vehicles.
Simple smart control
Connect via Bluetooth to manage charging, set schedules, and adjust current. This gives you useful control without relying on a constant internet connection.
Flexible socketed design
Using a Type 2 socket allows you to choose the cable that suits your vehicle. It also makes it easy to support different EVs over time or when friends and family visit.
Installation-friendly design
Built-in 6mA DC detection removes the need for an expensive Type B RCD, helping keep installation simpler and more cost-effective.
Technical specifications
- Input voltage: 400V AC three-phase (50Hz)
- Output power: Up to 22kW
- Maximum current: 32A
- Charging mode: Mode 3 (IEC 61851-1)
- Connector: Type 2 socket (untethered)
- Connectivity: Bluetooth
- Start methods: App / RFID / Button / Auto
- Protection: Type A RCD + 6mA DC detection (IEC 62955)
- Ingress protection: IP66
- Operating temperature: -25°C to +40°C

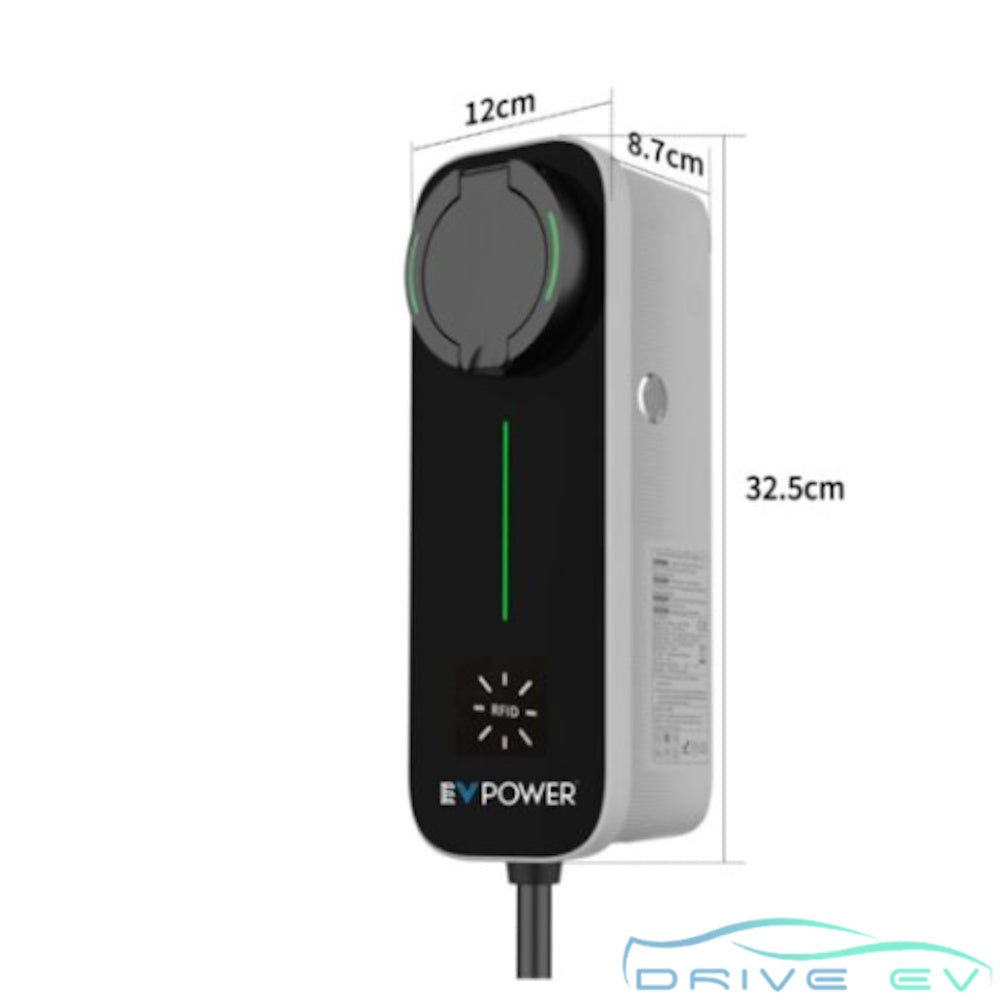

- Dimensions: 12cm (W) x 10/8.7cm (D) x 32.5cm (H)
- Weight: 2.5kg
Installation
This charger must be installed by a registered electrician. A suitable three-phase supply is required to achieve full performance. An isolation switch and RCBO are required at the switchboard.
Why buy from Drive EV
Drive EV specialises exclusively in electric vehicles and charging. Every charger we supply is selected for compatibility, safety, and reliability in New Zealand conditions.
- NZ-compatible equipment
- Expert technical support if needed
- Real-world tested products
- Local warranty support
- Trusted EV specialists with nationwide experience
Warranty
3-year NZ warranty with local support.
Important safety notes
- This charger must be installed by a qualified electrician.
- Do not attempt to install or modify the unit yourself.
- Ensure installation is completed to AS/NZS 3000 requirements.
- If any cables or connectors become damaged, stop using the charger immediately.
