Overview
The Premium 4.0 Tesla Portable EVSE is a premium 10A portable EV charging cable designed specifically for Japanese-import Tesla vehicles with the NACS/Tesla charge port.

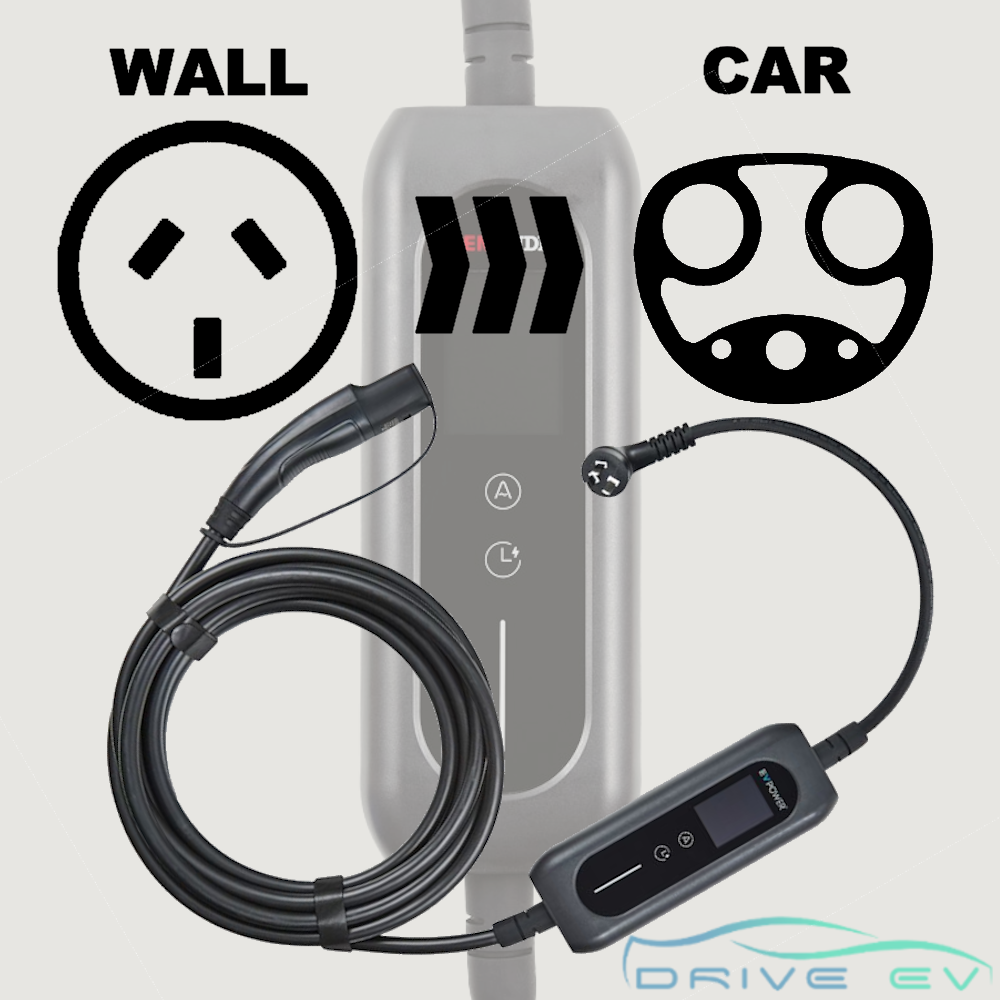

It plugs directly into a standard New Zealand 10A household outlet and directly into the vehicle, providing up to 2.3kW of AC charging without needing a Type 2 adaptor.
Important: This EVSE is for Japanese-import Teslas with the NACS/Tesla charge port. It is not suitable for NZ-new, Australian or UK-market Teslas with a Type 2 charge port.
Best for
- Japanese-import Tesla owners needing a dedicated home charging solution
- Regular charging from a standard NZ household outlet
- Travel, bach or workplace charging
- Keeping in the vehicle as a portable or backup EVSE
Compatibility

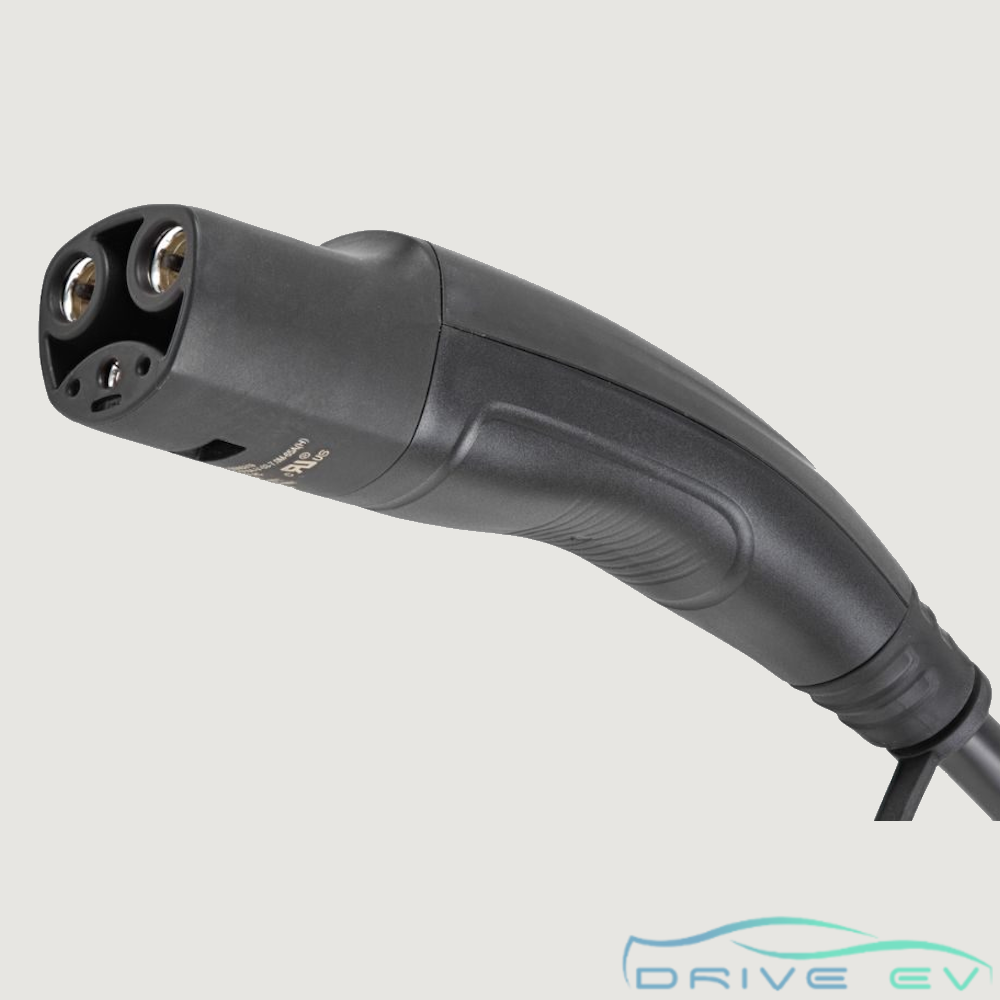

Vehicle connector: NACS / Tesla connector.
Designed for Japanese-market Tesla vehicles with the NACS/Tesla charge port, including Japanese-import:
- Tesla Model 3
- Tesla Model Y
- Tesla Model S
- Tesla Model X
Please check the charge port on your vehicle before ordering. NZ-new, Australian and UK-market Teslas normally use a Type 2 AC charge port and require a Type 2 EVSE instead.
Key features
- Direct NACS/Tesla connector for Japanese-import Teslas
- Plugs into a standard NZ 10A household outlet
- Selectable 6A / 8A / 10A charging current
- Up to 2.3kW charging power
- Large LCD showing voltage, current, energy delivered, charging time, temperature and charging status
- Adjustable delayed start and charging timer up to 12 hours
- Temperature monitoring built into the NZ three-pin plug
- Integrated 6mA DC fault detection
- Long 8.5m total cable length
- IP66 weather-resistant control unit
- IEC 62752 compliant
Charging speed guide
At the full 10A setting, this EVSE provides approximately 2.3kW of AC charging power.
As a rough guide, a typical EV may gain around 15-18km of driving range per hour, or approximately 120-145km over an 8-hour overnight charge.
Actual charging speed and range added will vary depending on the vehicle, battery state, charging losses, EVSE settings and driving efficiency.
Technical specifications
| Input | 230V AC single phase |
| Supply plug | NZ/AU 10A three-pin plug |
| Charging current | Selectable 6A / 8A / 10A |
| Maximum output | 2.3kW |
| Charging mode | Mode 2 portable EVSE / IC-CPD |
| Vehicle connector | NACS / Tesla |
| Cable length | 8.5m total (1.5m supply lead + 7m vehicle lead) |
| Ingress protection | IP66 |
| Operating temperature | -25°C to +50°C |
| DC fault detection | 6mA DC |
| Plug temperature monitoring | Yes |
| Compliance | IEC 62752, RCM |
| Warranty | 2 years |
Choosing the right EV charging setup
This EVSE is specifically designed for Japanese-import Teslas with a NACS/Tesla charge port and is a convenient solution for charging directly from a standard NZ household outlet.
If you regularly charge at home and want significantly faster charging, a 32A wall-mounted EVSE can provide up to around 7.4kW on single phase. Japanese-import Teslas can use a suitable Type 2 to NACS charging cable with a socketed Type 2 wall EVSE.
Important safety notes
- Always plug the EVSE directly into a suitable fixed wall outlet.
- Do NOT use extension leads, multi-boards, double adapters, travel adapters, plug converters or homemade adapters.
- Unwind the charging cable fully before use.
- Ensure the outlet and wiring are in good condition and suitable for continuous EV charging loads.
- If the outlet, plug or cable becomes hot, loose, damaged or discoloured, stop using it and have it inspected.
Why buy from Drive EV?
Drive EV specialises in electric vehicles, EV servicing and EV charging equipment. We select products that make sense for New Zealand vehicles and real-world use, and we can help if you're unsure which EVSE is right for your EV.
- NZ-compatible EV charging equipment
- Practical advice from EV specialists
- Local support and warranty assistance
- Real-world EV knowledge from an EV workshop
Warranty
2-year warranty.
