Overview

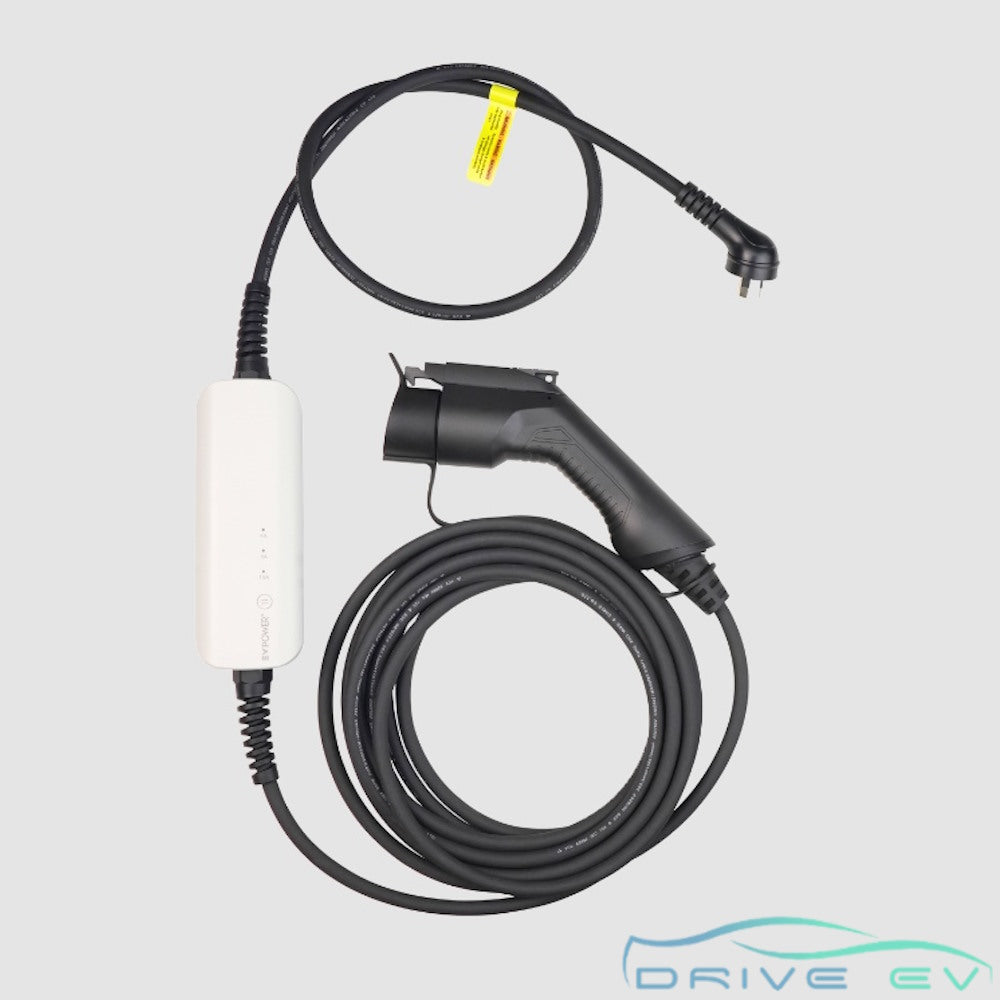

The LRCD Type 1 Portable EVSE is a simple, budget-friendly 10A portable EV charging cable for Type 1 electric vehicles and plug-in hybrids.
It plugs into a standard New Zealand household socket and is best suited as a spare, backup, travel, bach, or occasional-use EVSE. It is a useful option to keep in the boot for emergencies or for times when you need basic charging from a normal wall outlet.
If you expect to use a portable EVSE regularly, you may prefer the Classic Plus 5.0 Type 1 Portable EVSE for the extra convenience features and longer warranty.
Best for
- Budget-conscious EV and PHEV owners
- Keeping in the boot as a spare or emergency EVSE
- Occasional charging at a bach, workplace, or while travelling
- Backup charging from a standard NZ wall socket
- Situations where simple, basic charging is more important than extra convenience features
Compatibility

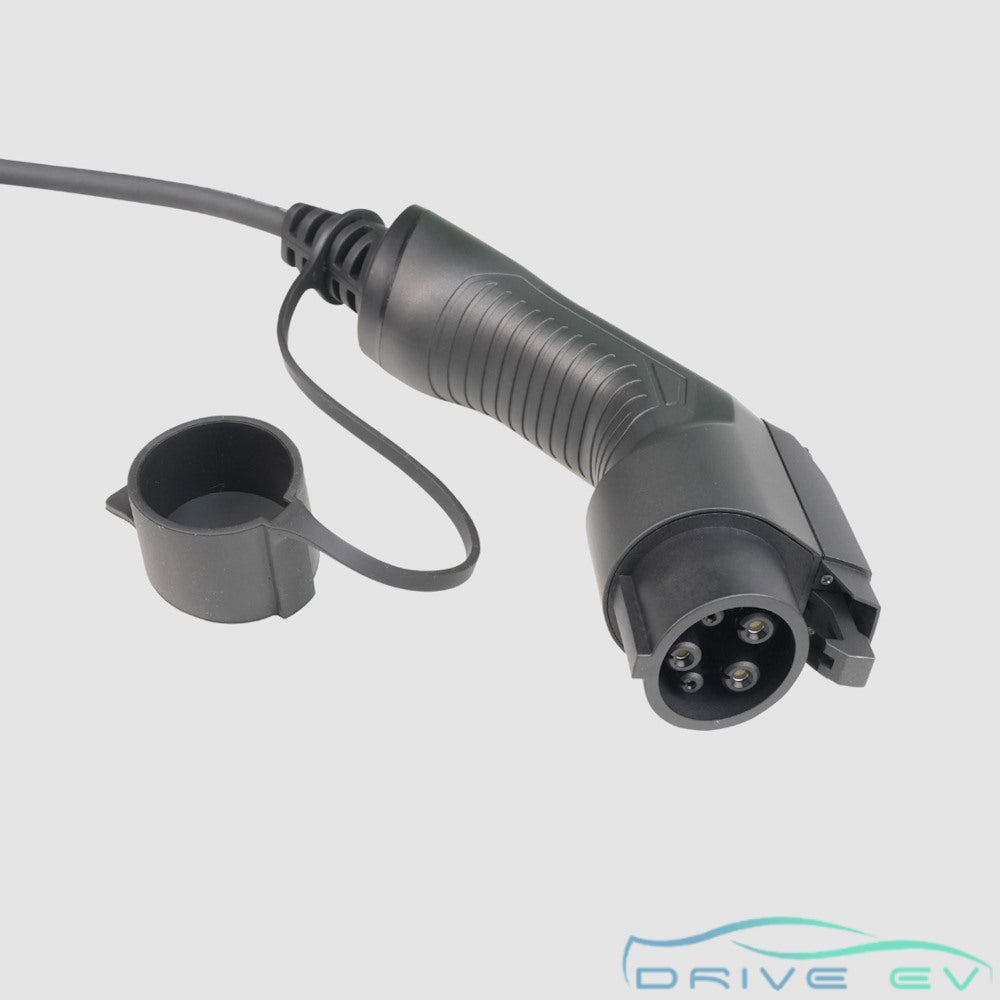

Vehicle connector: Type 1 / SAE J1772
Suitable for EVs and plug-in hybrids with a Type 1 charging port. Common Type 1 vehicles in New Zealand include many Japanese-import Nissan Leaf models, Mitsubishi Outlander PHEV, Mitsubishi i-MiEV, Toyota Prius Plug-in / Prius PHV, Nissan e-NV200, and some imported plug-in hybrid or EV models from BMW, Volkswagen, Mercedes-Benz, Honda, Chevrolet, and others.
Some models can be Type 1 or Type 2 depending on year, country of origin, and whether the vehicle is NZ-new or imported. Please check the shape of your charge port before ordering, or contact us and we can help confirm the right EVSE.
Key features
- Plugs into a standard NZ/AU 10A household socket

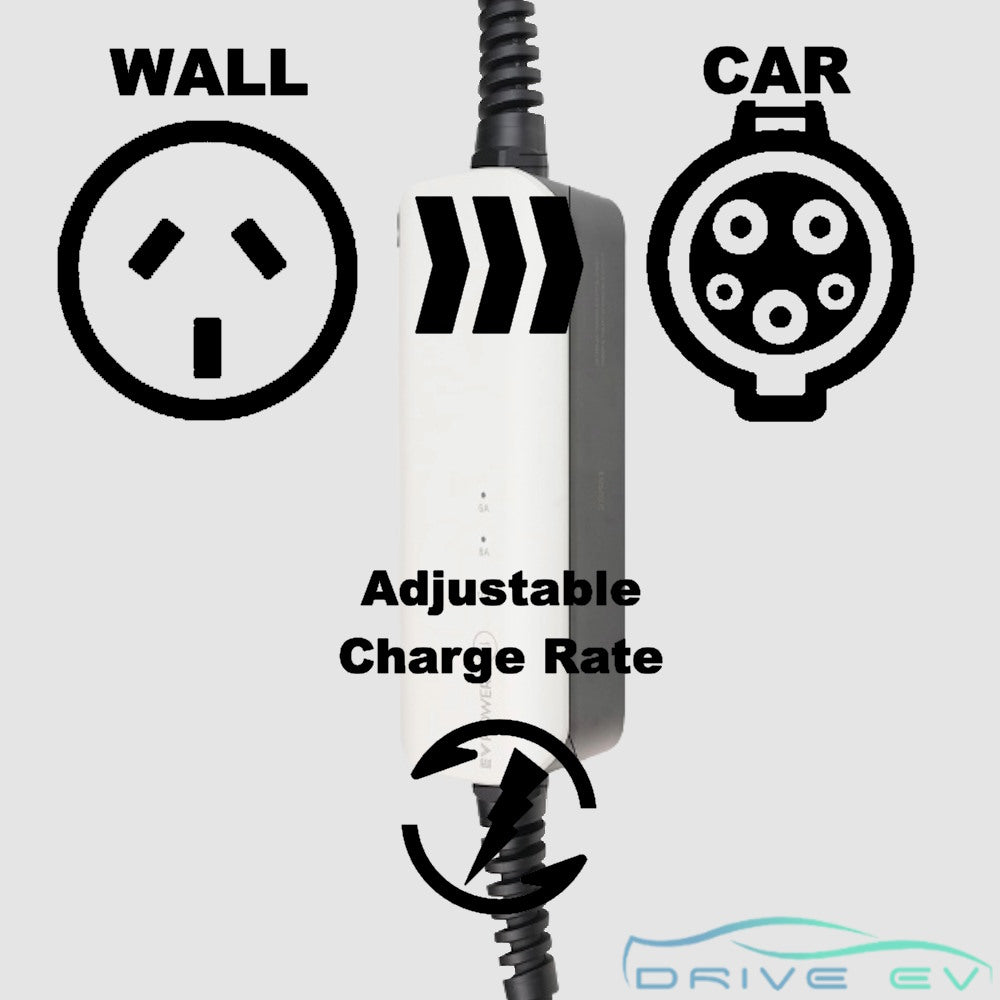

- Selectable current settings: 6A, 8A, or 10A
- Up to 2.3kW charging output
- Integrated 6mA DC fault detection
- Temperature monitoring at the wall plug
- 7m total cable length
- Compact portable design for storage in the car

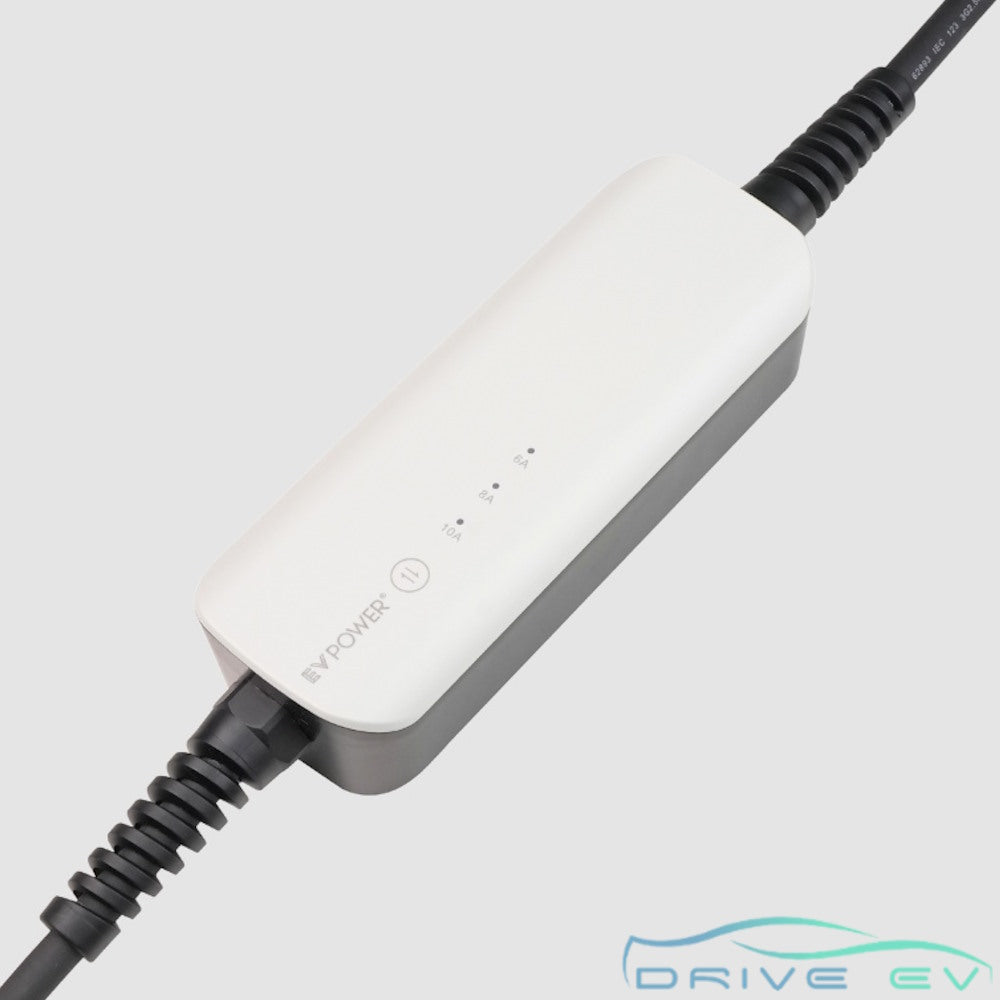

- IP65 rated control box for dust and water resistance
- Compliant for use in New Zealand
Charging speed guide
A 10A portable EVSE is a practical backup or occasional-use charging option. For faster regular charging, a 16A portable EVSE or wall-mounted EVSE may be a better long-term choice.
- 10A portable EVSE: adds roughly 15–18km of range per hour, or around 120–145km from an 8-hour overnight charge.
- 16A portable EVSE: requires a suitable 16A caravan-style outlet and adds roughly 25–28km of range per hour, or around 200–225km from an 8-hour charge.
- 32A wall-mounted EVSE: the best solution for regular home charging, adding roughly 50–55km of range per hour. On many EVs, this can add most or all of a full charge overnight.
As a rough example, these figures are based on a 60kWh EV using around 130Wh/km. Actual charging speed will vary depending on the vehicle, battery state, EVSE settings, wiring, charging losses, and whether the vehicle reaches full charge before the end of the charging session.
Technical specifications
- Input voltage: 230V AC single phase
- Supply plug: NZ/AU 10A 3-pin plug
- Output current: 6A / 8A / 10A selectable
- Maximum output: 2.3kW
- Charging mode: Mode 2 portable EVSE / IC-CPD
- Vehicle connector: Type 1 / SAE J1772
- Total cable length: 7m
- Control box rating: IP65
- Standard: IEC 62752
- Warranty: 2 years
Choosing the right EV charging setup
The LRCD Type 1 is the budget-friendly choice if you want a basic 10A portable EVSE for occasional use, travel, bach charging, or emergency backup.
If you expect to use a portable EVSE regularly, we recommend the Classic Plus 5.0 Type 1 Portable EVSE. It still plugs into a standard household socket, but adds a longer 9m cable, OLED display, delayed start timer, wall mounting cradle, carry bag, IP67 rated control box, and a 3-year warranty.
If you have a suitable 16A caravan-style outlet and want faster portable charging, consider the Premium 4.0 Type 1 16A Portable EVSE.
For the best everyday home charging setup, a 32A wall-mounted EVSE is usually the better long-term solution. View our range of wall-mounted EVSEs.
Important safety notes
- Always plug the EVSE directly into a suitable fixed wall outlet.
- Do not use extension leads, multi-boards, double adapters, travel adapters, or plug converters.
- Unwind the cable fully before charging.
- If the outlet, plug, or cable becomes hot, loose, damaged, or discoloured, stop using it and have it checked.
- For regular EV charging, make sure the outlet and wiring are in good condition and suitable for continuous charging loads.
Why buy from Drive EV?
Drive EV specialises in electric vehicles, EV servicing, and EV charging equipment. We select products that make sense for New Zealand vehicles and real-world use, and we can help if you are unsure which EVSE is right for your EV.
- NZ-compatible EV charging equipment
- Practical advice from EV specialists
- Local support and warranty assistance
- Real-world EV knowledge from an EV workshop
Warranty
This EVSE includes a 2-year warranty.
